MX-7150 is a 7mm capsule, free-field omnidirectional (pressure) reference microphone that is extremely popular among MiEMi users. Its extraordinarily flat, “class 1” 10Hz to 20kHz frequency response and capability to measure at sound pressure levels up to 145dBspl make it extremely well suited for use with our complete family of products.
Its low impedance and ability to utilize phantom power sources anywhere from 12 – 48 VDC make it very adaptable to an incredibly wide range of audio interfaces. Its optional water resistant SWS-7 windscreen, mechanically robust stainless steel body, and rugged Neutrik connectors make it well suited for the demanding environments of field use.
FEATURES
Frequency range 10Hz - 20kHz
Sensitivity 6mV/Pa typ.
Matching tolerance ±0,5dB linearity, 1mV microphone sensitivity @94dBspl
Max SPL (3% distortion limit) 145 dB spl typ.
Dynamic range 115 dB
Self Noise 30 dB spl
Calibration files available online at my.iSEMcon.com
IEC 61672 class 1 frequency response
Dimensions: acoustic port dia. 1⁄4” (7mm) / Microphone body 0.75” (19mm) / Overall length 6” (152mm)
Weight 0.3oz (75 grams)

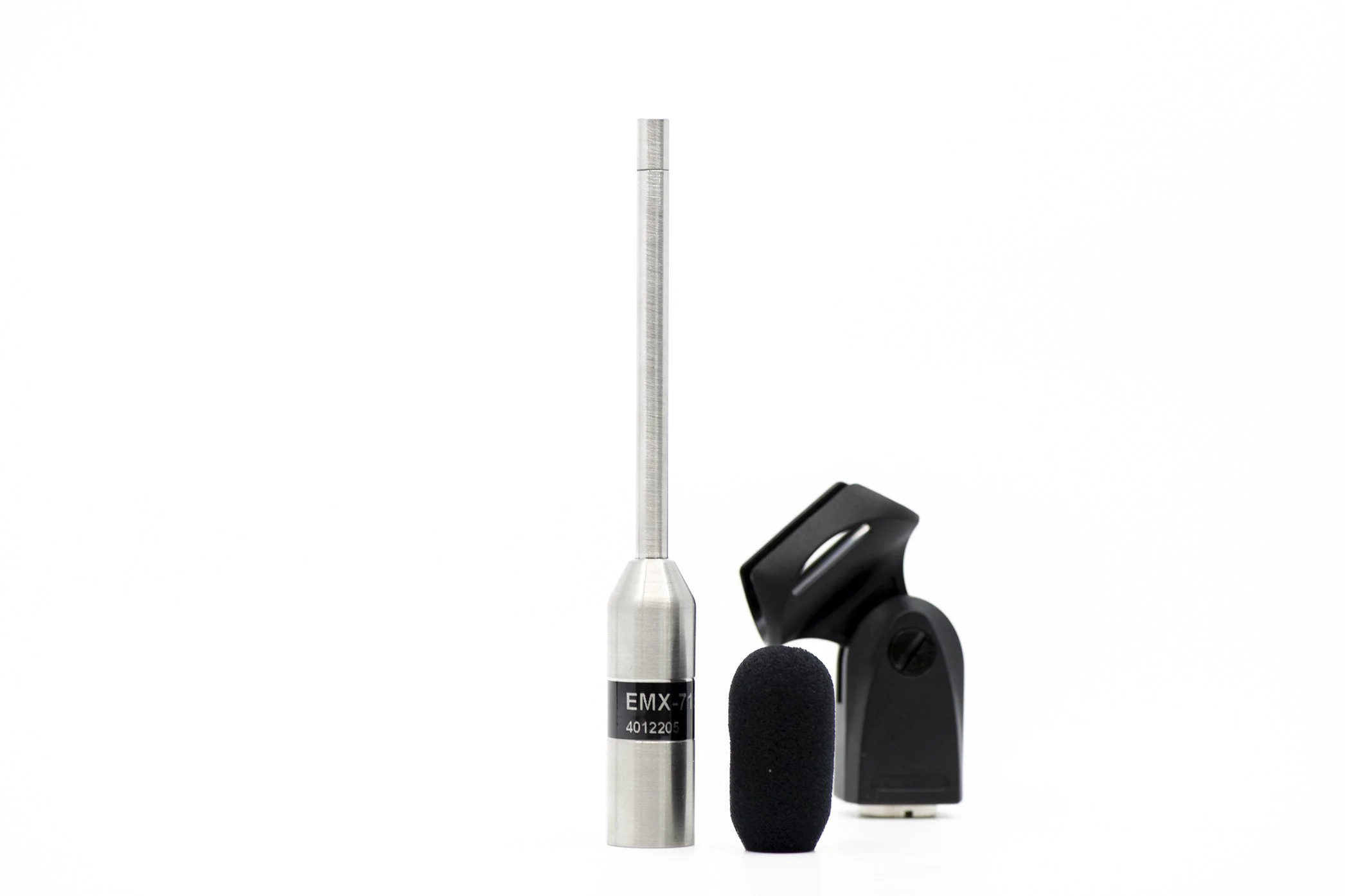

WHAT'S IN THE BOX?
1 EMX-7150 Microphone(s)
1 Mic clamp with adapter screw (excludes no clip variant)
1 Shockmount with adapter screw (excludes no shockmount variant)
1 Standard Windscreen
1 iSEMcon Soft Pouch
